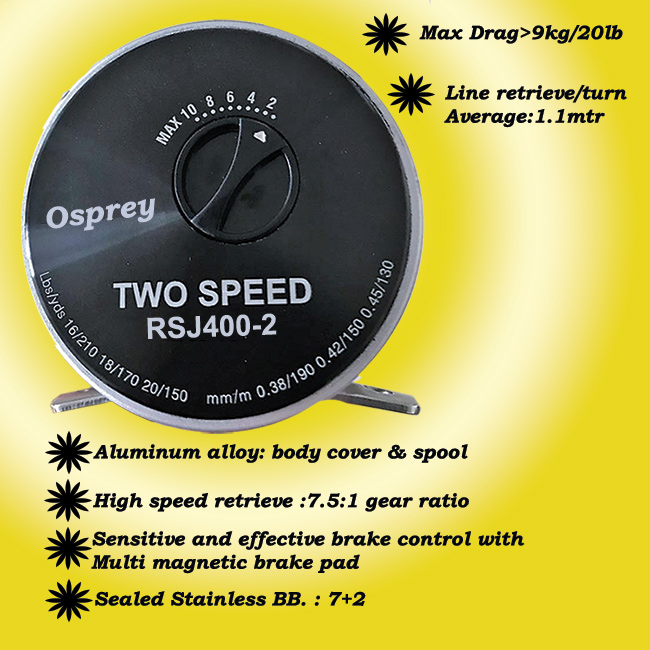

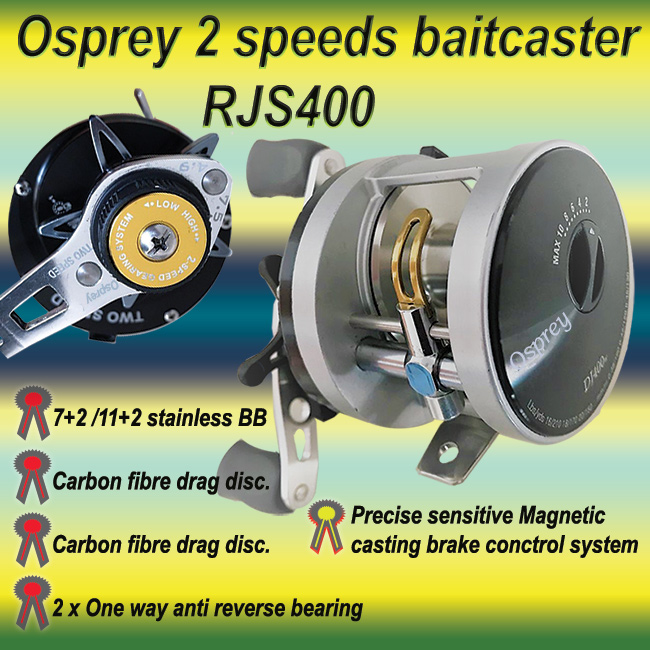

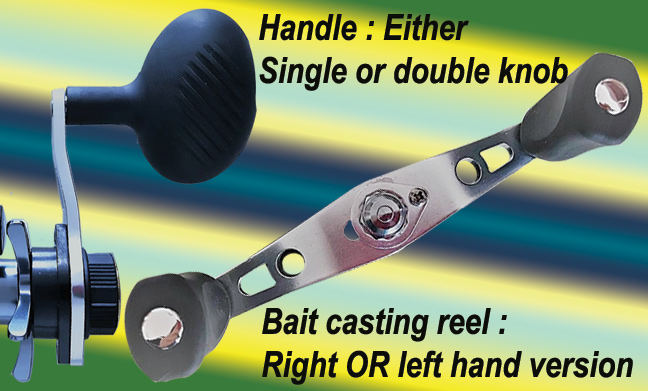

Special 1 and 2 speed baitcasting
reel

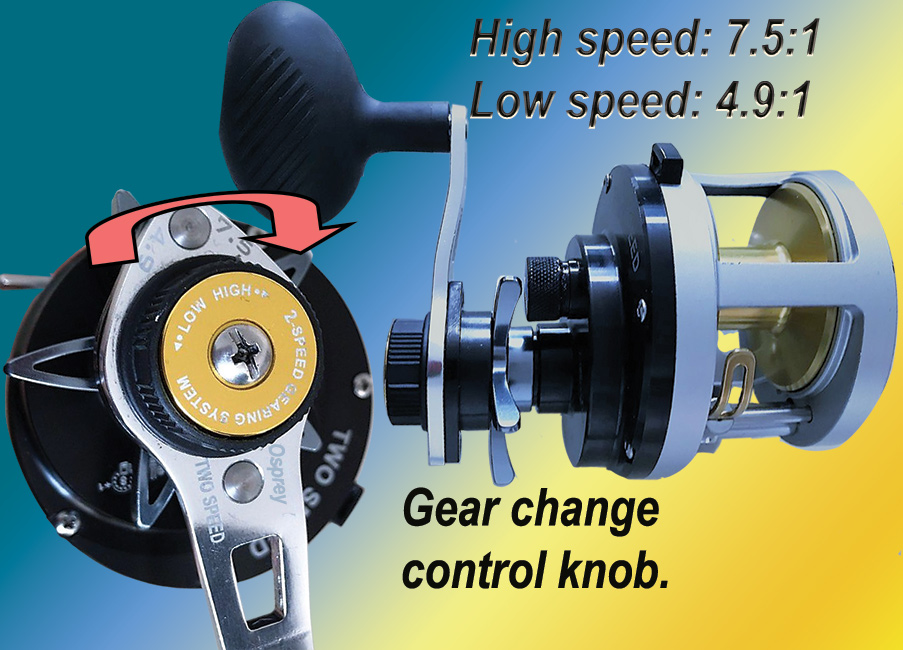

1 speed: 6.3:1 or 2
speed 7.5:1/4.9:1 11+2 Stainless BB
baitcasting reels-
Alu. cover , Alu spool.
Code |
Capacity-mm/mtr &
lb/yd
|
RJS400 |
16
lb/210
yd, 18
lb/170
yd, 20
lb/150yd
0.38/190m, 0.42/150, 0
.45
/130m
|
Baitcasting reels EASY
adjustable magnetic casting

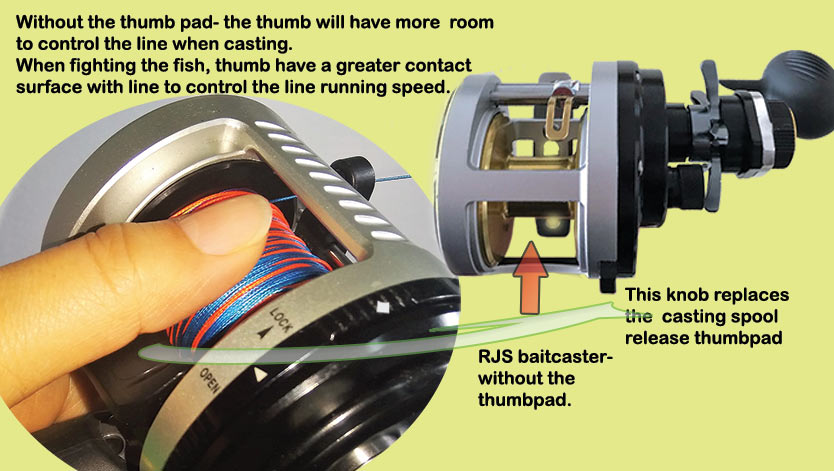

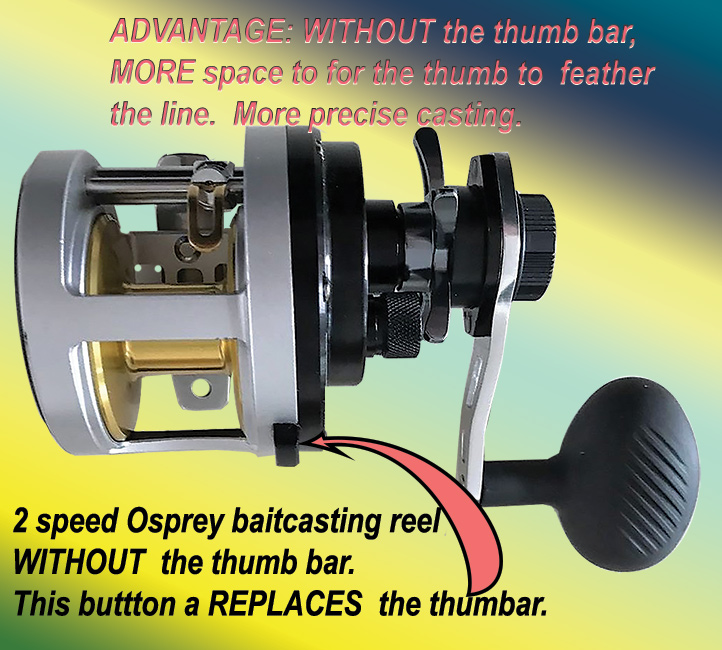

brake system, New spool release casting system |
2 Speed model
|
Baitcasting reels with 12bb-stainless. High retreival rate
baitcasting reel
:2.3ft or 0.7m/turn
Code |
Capacity-mm/mtr &
lb/yd
|
RCD100A8
GR:6.4:1 |
0.28
/130
m, 0.30/110m,0.32/100m
8lb/140yd, 10lb/120yd,12lb/105yd |
RCD150A8
GR:5.9:1 |
0.30
/145
m, 0.32/130m,0.35/110m
10lb/160yd,12/140yd 14lb/120yd |
RCD200A8
GR:5.1:1 |
0.32
/170
m, 0.35/140m,0.38/120m
12lb/190yd, 14/160yd,16lb/135yd |
RCD300A8
GR:5.1:1 |
0.35
/210
m, 0.38/180m,0.42/150m
14lb/220yd, 16/190yd,18lb/155yd |
Max drag on baitcasting reels >6kg/13.5lb
Baitcasting reels with left or hand crank |
Baitcasting reels with Full alu. Alloy frame, side frame &
spool.EASY access to spool- just turn thumb lock on side
cover. |
11+1 Stainless BB baitcasting reels-
High Drag force=>7kg/15lb
Gear ratio : 7.0:1
Code |
Capacity-mm/mtr &
lb/yd
|
RBL900CA12 |
10
lb/160
yd, 13
lb/120
yd, 16
lb/100
yd
0.28/150m, 0.33/115, 0.
37/90m
|
Baticasting reels with EASY
access to spool- turn side cover. 10 stops magnetic brake
system
|

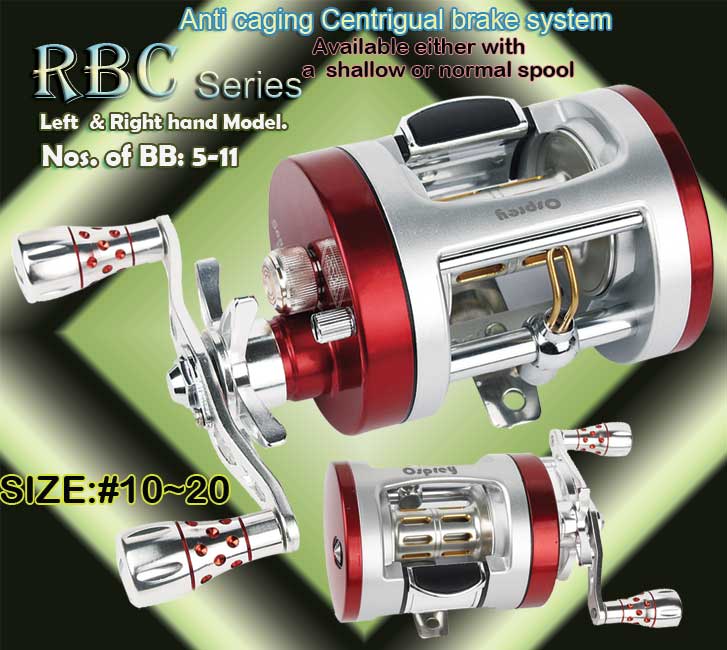

Baitcasting reels for saltwater use.
available
in left and
right hand.
Stainless Ball race. Gear ratio:5.1:1
Code |
Capacity-mm/mtr &
lb/yd
|
RBC100(R/L)-A5 |
8/160yd,10lb/135yd,
12lb/120yd
0.25/180m,0.30/125m,0.35/90m |
RBC150(R/L)-A5 |
10/230yd,12lb/200yd,
14lb/170yd
0.30/210m,0.35/160m,0.40/120m |
RBC200(R/L)-A11 |
12/315yd,14lb/265yd,
17lb/200yd
0.35/240m,0.40/185m,0.45/120m |
Baitcasting reels line payout per spool turn.
#100-50cm, #150-57cm ,#200-61cm |
Baitcasting reels Max drag: 6kg
Nos off BB from 5 to 11 |
This model of baitcasting reels available with either deep or
shallow depth spool. |
Baitcasting reels for saltwater use.
SHALLOW SPOOL VERSION
.
Stainless Ball race. Gear ratio:5.1:1
Code |
Capacity-mm/mtr &
lb/yd
|
RBC100(R/L)-SA5 |
0.20/220m,0.25/140m,0.30/110m |
RBC150(R/L)-SA5 |
0.25/220m,0.30/150m,0.40/120m |
RBC200(R/L)-SA11 |
0.30/230m,0.35/170m,0.40/130m |
Baitcasting reels line payout per spool turn.
#100-50cm, #150-57cm ,#200-61cm |
Baitcasting reels Max drag: 6kg
Nos off BB from 5 to 11 |
This model of baitcasting reels available with either deep
or shallow depth spool |
8bb-stainless Baticasting
reels
Baitcasting reels with long line bale:2ft/turn
Code |
Capacity-mm/mtr &
lb/yd
|
RDE100A8
GR:5.3:1 |
0.28
/130
m, 0.30/110m,0.32/100m
8lb/140yd,10lb/120yd,12lb/105yd |
RDE150A8
GR:5.0:1 |
0.30
/145
m, 0.32/130m,0.35/110m
10lb/160yd,12lb/140yd,14lb/120yd |
RDE200A8
GR:4.7:1 |
0.32
/210
m, 0.35/140m,0.38/120m
12lb/190yd,14lb/160yd,16lb/135yd |
RDE300A8
GR:4.7:1 |
0.35
/210
m, 0.38/180m,0.42/150m
14lb/220yd,16lb/190yd,18lb/155yd |
Max drag on baitcasting reels >6kg/13.5lb.
Baitcasting reels with left or hand crank
|
Baitcasting reels with alu. Alloy side frame and
spool.EASY access to spool- just turn
thumb lock on side cover.
optional color |
9+1 Stainless BB
baitcasting reels-
High Drag
force=>5kg/11lb
Gear ratio : 6.30:1
Dual casting brake: Centrifigal +Magnetic
Code |
Capacity-mm/mtr &
lb/yd
|
RBL1000A9 |
10
lb/160
yd, 13
lb/120
yd, 16
lb/100
yd
0.28/150m, 0.33/115, 0.
37/90m
|
Baticasting reels with EASY access to
spool- turn side cover. Dual casting brake control
|
Baitcasting reels available
in left and right
hand. Stainless Ball race. Gear ratio:5.1:1
Code |
Capacity-mm/mtr &
lb/yd
|
RSH100(R/L)-A5 |
#10/140yd,12lb/120yd,14lb/100yd, 0.30/120m,0.32/100m,
0.38/80m |
RSH150(R/L)-A5 |
#12/220yd,14lb/180yd,16lb/160yd, 0.35/160m,0.40/120m,
0.45/100m |
RSH200(R/L)-A5 |
#14/260yd,16lb/220yd,17lb/200yd, 0.38/200m,0.40/180m,
0.45/140m |
Baitcasting reels line payout/turn:
#100--50cm, #150--57cm, #200--61cm |
Baitcasting reels with :Alu frame, aluminium spool, with anti reverse clutch. Anti
caging centrifugal brake.. Accessing spool- simple and easy- twist & slide
side cover. Tool is not required. |
Baitcasting reels max drag :7kg |
8 Stainless BB baitcasting reels-
Graphite side frame. Alu spool.
Gear ratio : 5.3:1
Code |
Capacity-mm/mtr &
lb/yd
|
RDA-100A8 |
8
lb/14
0yd, 10
lb/120
yd, 12
lb/105
yd
0.28/130m, 0.30/110, 0
.
32/100
|
RDA-150A8 |
10
lb/16
0yd, 12
lb/140
yd, 14
lb/120
yd 0.30/145m, 0.32/130, 0
.
35/110 |
Baticasting reels with EASY access to
spool- turn side cover. magnetic brake system
Closed Face baitcasting reel with combine
centrifugal+magnetic casting brake: GR::6.3:1. Max
drag:>5kg/11lb
7+1bb.Stainless BB
Code |
Capacity-mm/mtr &
lb/yd
|
RHB103 |
0.29/110m,0.30/90m,0.34mm/75m
12lb/110yd,14lb/90yd, 16lb/75yd |

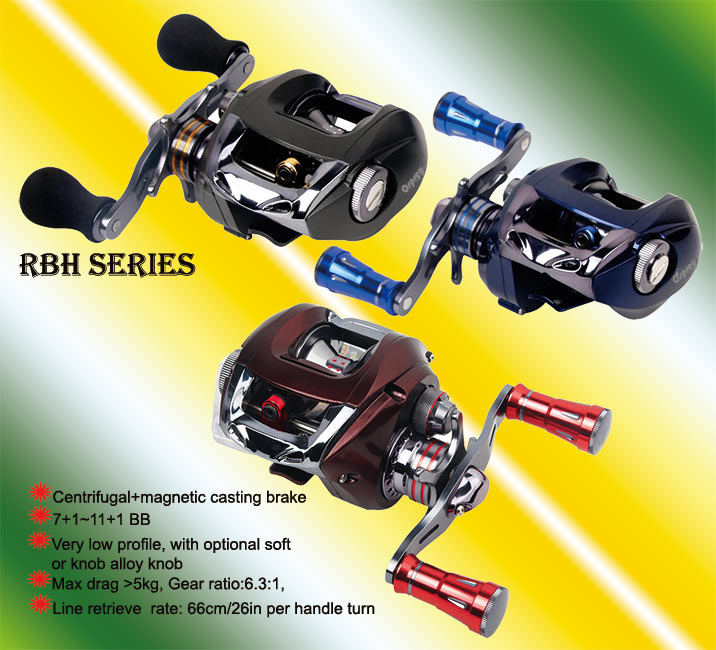

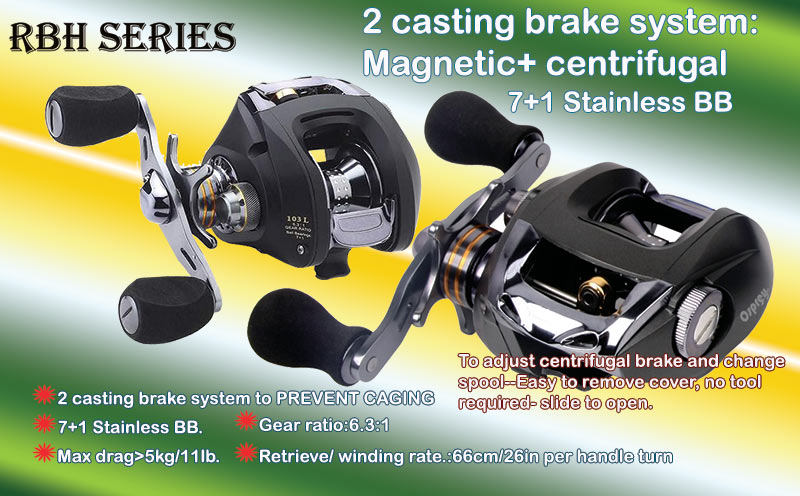

Anti caging line buffer system- magnetic + centrifugal brake. Left or right
hand crank
Side plate color : gold/yellow/silver/brown.
line retrieve rate-66cm/2.2ft/ turn of the handle
|

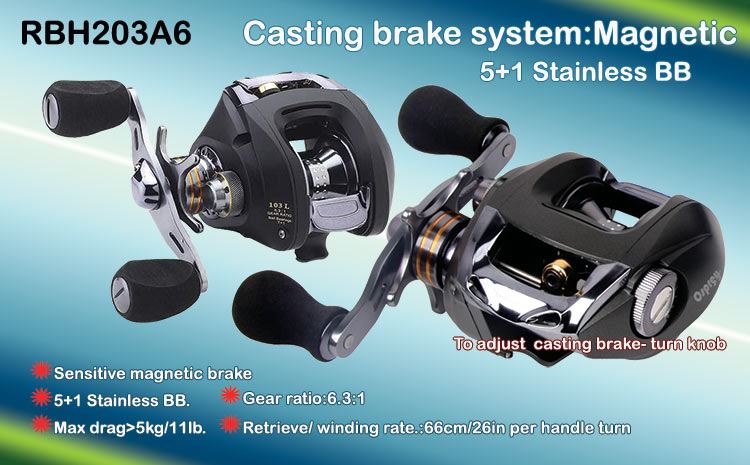

RBG203- with magnetic brake
ONLY
|
Baitcasting reel with LARGE
HANDLE KNOB: GR::6.3:1. Max drag:>5kg/11lb
5+1bb.Stainless BB
Code |
Capacity-mm/mtr &
lb/yd
|
RBH203 |
0.28/150m,0.30/130m,0.32mm/110m
8lb/160m,10lb/140yd 12lb/120yd |
Anti caging line buffer system- magnetic brake. Left or right hand crank
Side plate color : gold/yellow/silver/brown.
line retrieve rate-66cm/2.2ft/ turn of the handle |
|
